Hey there! As a supplier of 3D Printing Model Parts, I've seen my fair share of issues that pop up during the 3D printing process. In this blog, I'm gonna share some tips on how to troubleshoot common problems when 3D printing model parts.
1. Adhesion Problems
One of the most common issues in 3D printing is poor adhesion between the print and the build plate. If your model isn't sticking properly, it can lead to warping, shifting, or even complete detachment during the printing process.
Possible Causes and Solutions
- Dirty Build Plate: Over time, the build plate can accumulate dust, grease, or residue from previous prints. This can prevent the print from adhering properly. To fix this, clean the build plate thoroughly with isopropyl alcohol before each print. You can use a lint - free cloth to wipe it down.
- Incorrect Bed Temperature: Different filaments require different bed temperatures for optimal adhesion. For example, PLA usually works well at a bed temperature of around 50 - 60°C, while ABS may need a higher temperature, around 100 - 110°C. Check the filament manufacturer's recommendations and adjust your printer settings accordingly.
- Lack of Adhesive: Sometimes, using an adhesive can significantly improve adhesion. You can try using a glue stick, hairspray, or a specialized 3D printing adhesive on the build plate. Apply a thin, even layer before starting the print.
2. Stringing and Oozing
Stringing, also known as “spider - webbing,” occurs when thin strands of filament are left between different parts of the print. Oozing is when the filament drips out of the nozzle when it's not supposed to.
Possible Causes and Solutions
- High Temperature: If the nozzle temperature is too high, the filament becomes too fluid and can easily string or ooze. Lower the nozzle temperature by a few degrees and see if the problem improves. You may need to do some trial and error to find the optimal temperature for your filament.
- Retraction Settings: Retraction is the process of pulling the filament back into the nozzle to prevent oozing. If your retraction distance is too short or the retraction speed is too slow, stringing can occur. Increase the retraction distance and speed in your slicer settings. However, be careful not to set them too high, as this can cause other issues like under - extrusion.
- Travel Speed: A slow travel speed can also contribute to stringing. Increasing the travel speed of the print head can reduce the time the nozzle is in the air, minimizing the chances of stringing.
3. Layer Shifting
Layer shifting happens when the print head moves unexpectedly during the printing process, causing the layers to be misaligned.
Possible Causes and Solutions
- Loose Belts or Pulleys: Check the belts and pulleys on your 3D printer. If they are loose, they can cause the print head to move erratically. Tighten the belts and make sure the pulleys are properly secured. You may need to use a wrench or other tools to adjust them.
- Mechanical Issues: There could be other mechanical problems with your printer, such as a misaligned frame or a faulty stepper motor. Inspect the printer carefully for any signs of damage or wear. If you're not sure how to fix a mechanical issue, it may be best to consult the printer's manual or contact the manufacturer for support.
- Power Surges: A sudden power surge can cause the printer to lose its position and result in layer shifting. Use a surge protector to protect your printer from power fluctuations.
4. Under - extrusion and Over - extrusion
Under - extrusion occurs when the printer doesn't extrude enough filament, resulting in thin or incomplete layers. Over - extrusion, on the other hand, is when too much filament is extruded, causing blobs and uneven surfaces.
Possible Causes and Solutions
- Clogged Nozzle: A clogged nozzle is a common cause of under - extrusion. You can try to clear the clog by heating the nozzle to the appropriate temperature and then using a thin wire or needle to gently remove the blockage. If the clog is severe, you may need to replace the nozzle.
- Incorrect Extrusion Multiplier: The extrusion multiplier in your slicer settings determines how much filament is extruded. If it's set too low, you'll get under - extrusion; if it's set too high, you'll get over - extrusion. Adjust the extrusion multiplier in small increments until you achieve the correct amount of extrusion.
- Filament Diameter: Make sure the filament diameter you've entered in your slicer settings matches the actual diameter of the filament you're using. An incorrect filament diameter can lead to under - or over - extrusion. Measure the filament with a caliper and update the settings accordingly.
5. Surface Finish Issues
The surface finish of your 3D printed model can be affected by various factors, such as layer lines, rough surfaces, or visible seams.
Possible Causes and Solutions
- Layer Height: A larger layer height will result in more visible layer lines. To achieve a smoother surface finish, reduce the layer height in your slicer settings. However, keep in mind that a lower layer height will also increase the printing time.
- Print Speed: Printing too fast can cause the filament to be deposited unevenly, resulting in a rough surface. Slow down the print speed to allow the filament to cool and settle properly.
- Sanding and Post - processing: If you're not satisfied with the surface finish of your print, you can use sandpaper to sand the surface and smooth out the layer lines. You can also apply a primer or paint to further improve the appearance of the model.
Conclusion

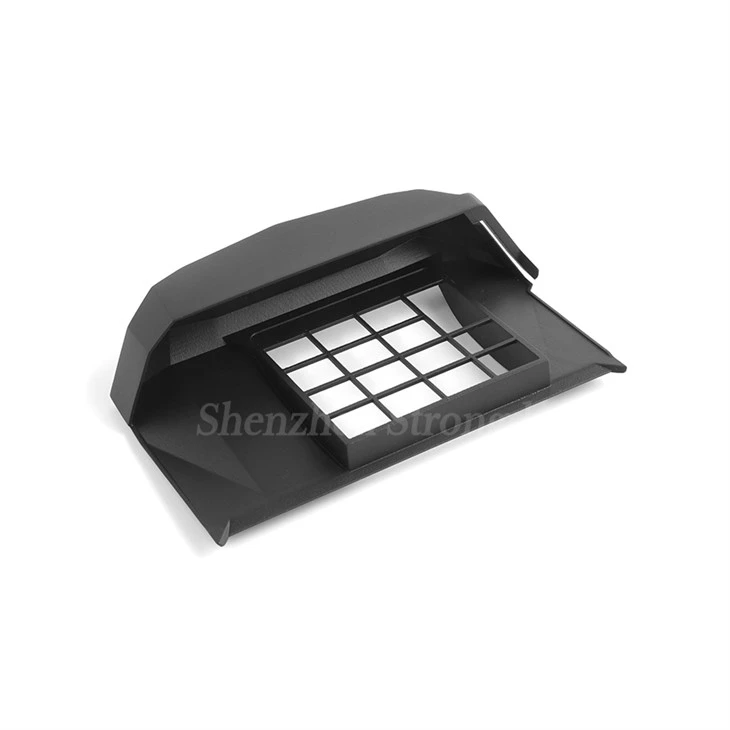

3D printing can be a fun and rewarding hobby, but it's not without its challenges. By understanding the common problems and how to troubleshoot them, you can improve the quality of your 3D printed model parts. If you're looking for high - quality Resin 3D Printing Parts, SLA 3D Model Making, or 3D Printing Model Parts, don't hesitate to reach out for a procurement discussion. We're here to help you bring your ideas to life!
References
- MakerBot Industries. (2023). Troubleshooting Guide. Retrieved from MakerBot official website.
- Prusa Research. (2023). 3D Printing Troubleshooting. Retrieved from Prusa official website.
